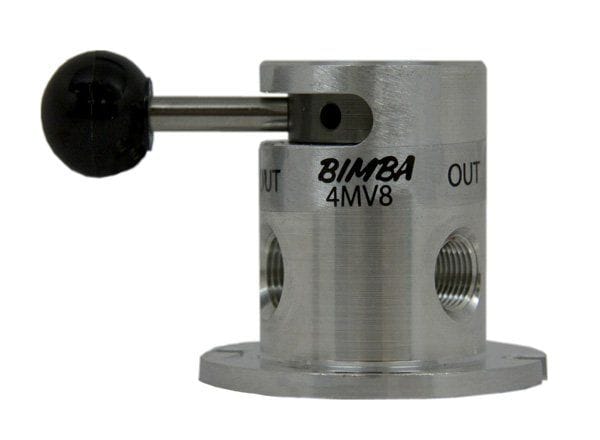

4MV8 IMI Bimba Miniature Rotary II Valve

Sku#: 4MV8

Contact us for availability.

IMI Bimba MV8 valves provide either 3-way pilot control (3MV8) or 4-way directional control (4MV8). To operate MV8 valves, simply move the ball handle across the slot on the valve body. The handle rotates a precision lapped disc to control the directional flow of air. The handle will hold in any position. Air exhausts through the disc and out to atmosphere.

IMI Bimba MV8 valves provide either 3-way pilot control (3MV8) or 4-way directional control (4MV8).  To operate MV8 valves, simply move the ball handle across the slot on the valve body.  The handle rotates a precision lapped disc to control the directional flow of air.  The handle will hold in any position.  Air exhausts through the disc and out to atmosphere.

  • Flow:  0.14 Cv
  • Ports:  1/8" NPT
  • Temperature range:  -40˚F to 250˚F
  • Lubrication:  SAE 10
  • Pressure range:  0 to 150 PSI (air only)
  • Seals:  Buna

Learn more about IMI Bimba.
