33SAWL Baco 24 V White LED Screw Terminal Base Mount Block
Sku#: 33SAWL
Contact us for availability.
Details
More Information
Reviews

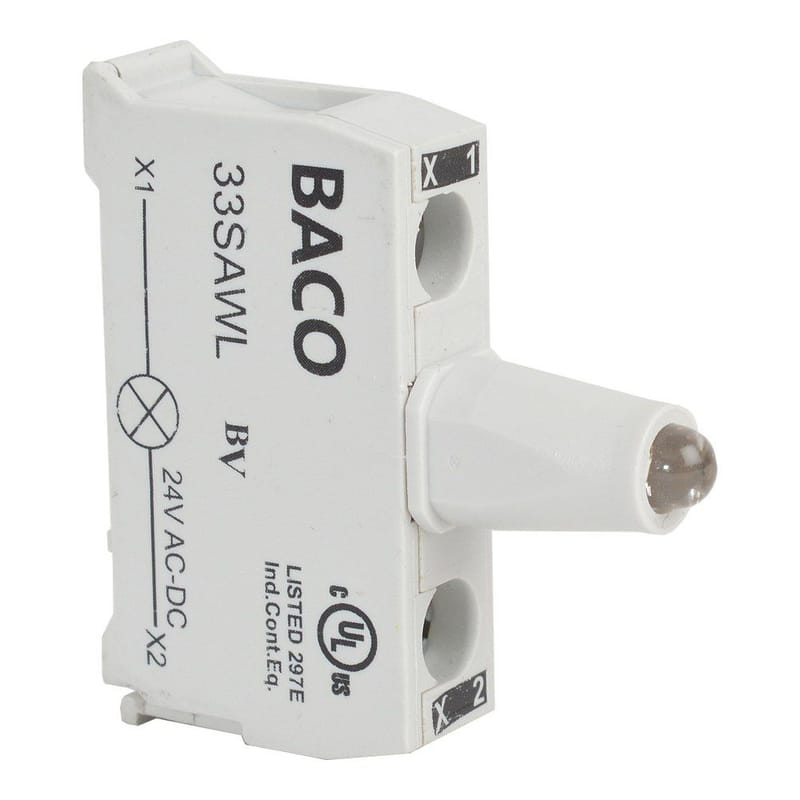

The Baco 33SAWL is a 24 V White LED Screw Terminal Base Mount Block.
Base mounts directly into empty Baco LBX control stations — no mounting clip required.
- Long-life LED; match the module voltage to your control circuit
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | 33SAWL |
| Device Type: | LED Module |
| Size: | 22 mm |
| Terminal Type: | Screw Terminal |
| Configuration: | Component |
| Color: | White |
| LED Voltage: | 24 V AC/DC |
| Mounting: | Base mount (for empty LBX control stations, no clip) |
General Specifications:
| Rated insulation voltage: | 300 V |
| Current consumption: | 25 mA ± 20% |
| LED lifetime: | 50,000 hours at 25 °C |
| Operating temperature: | -25 °C to +70 °C |
Source: Baco Controls catalog 803, technical specifications.
