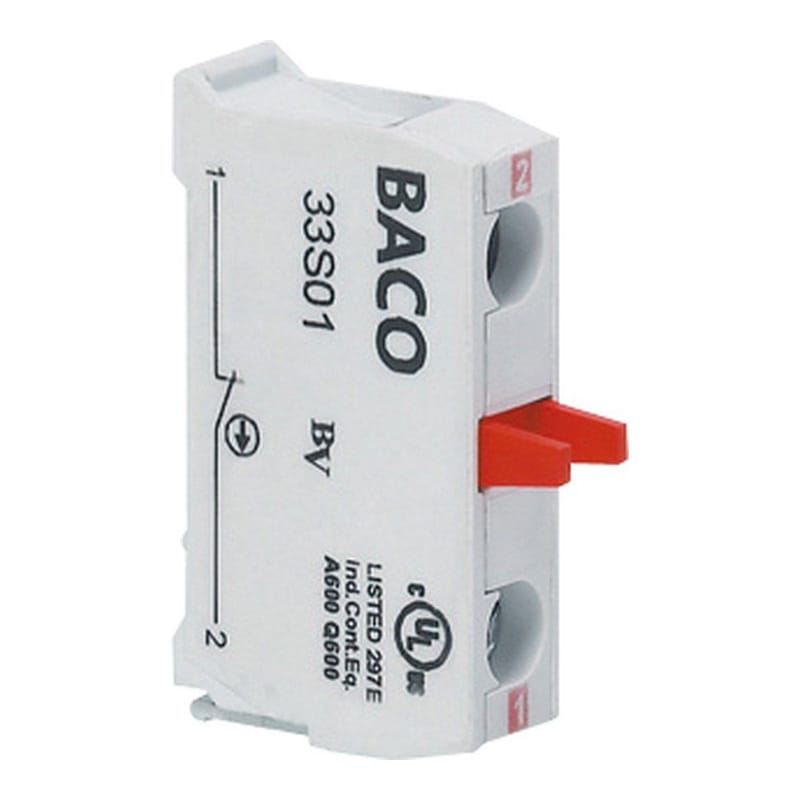

33S01 Baco 1 NC Screw Terminal Base Mount Contact Block

The Baco 33S01 is a 1 NC Screw Terminal Base Mount Contact Block.

Base mounts directly into empty Baco LBX control stations — no mounting clip required.

Specifications:

Manufacturer:	Baco Controls
Part Number:	33S01
Device Type:	Contact Block
Size:	22 mm
Terminal Type:	Screw Terminal
Configuration:	Component
Contacts:	1 Normally Closed (NC)
Mounting:	Base mount (for empty LBX control stations, no clip)

General Specifications:

Rated insulation voltage:	690 V AC (IEC), 600 V AC (UL 508)
UL 508 rating:	A600 / Q600
Conventional thermal current:	AC15: 10 A, DC13: 2.5 A
NC contacts:	Positive opening (IEC/EN 60947-5-1)
Electrical life:	1 million cycles
Minimum operating current:	24 V DC, 5 mA
Wire size:	Rigid or flexible without ferrule: 0.5 mm² to 2 x 2.5 mm²; with ferrule: 0.5 mm² to 2 x 1.5 mm²
Degree of protection:	IP20 at the rear of the panel

Source: Baco Controls catalog 803, technical specifications.
