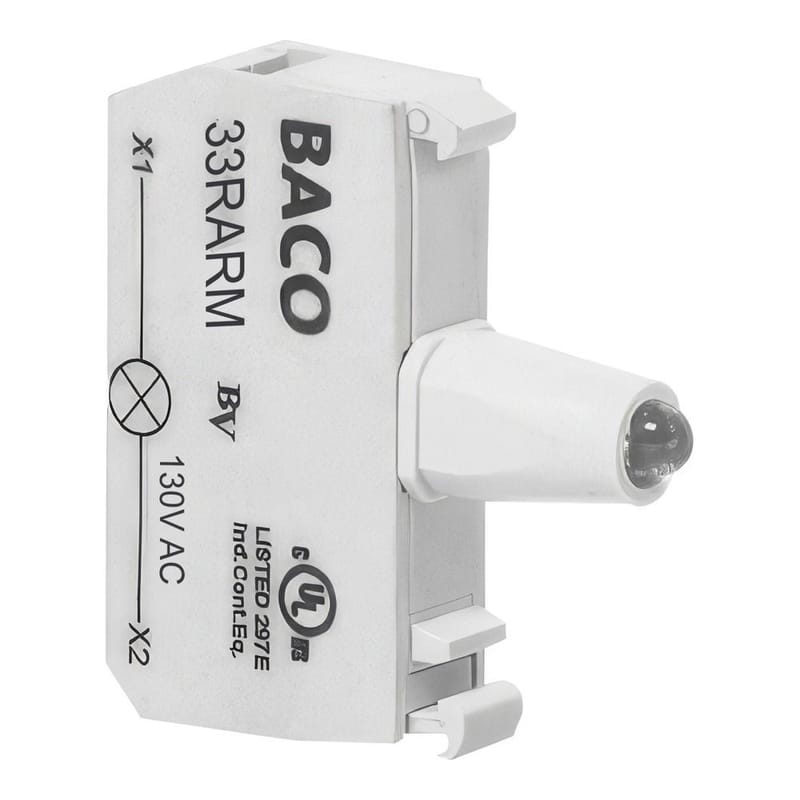

33RARM Baco 130 V Red LED Plug-In Terminal Block

The Baco 33RARM is a 130 V Red LED Plug-In Terminal Block.

Fits Baco 22mm and 30mm operators: it snaps onto the mounting clip behind the operator head.

• Snaps onto the mounting clip behind an illuminated operator or pilot light
• Long-life LED; match the module voltage to your control circuit

Specifications:

Manufacturer:	Baco Controls
Part Number:	33RARM
Device Type:	LED Module
Size:	22 mm
Terminal Type:	Plug-In Terminals
Configuration:	Component
Color:	Red
LED Voltage:	130 V AC
Mounting:	Clip mount (on the mounting clip behind the operator)

General Specifications:

Rated insulation voltage:	300 V
Current consumption:	20 mA ± 10%
LED lifetime:	100,000 hours at 25 °C
Operating temperature:	-25 °C to +70 °C

Source: Baco Controls catalog 803, technical specifications.
