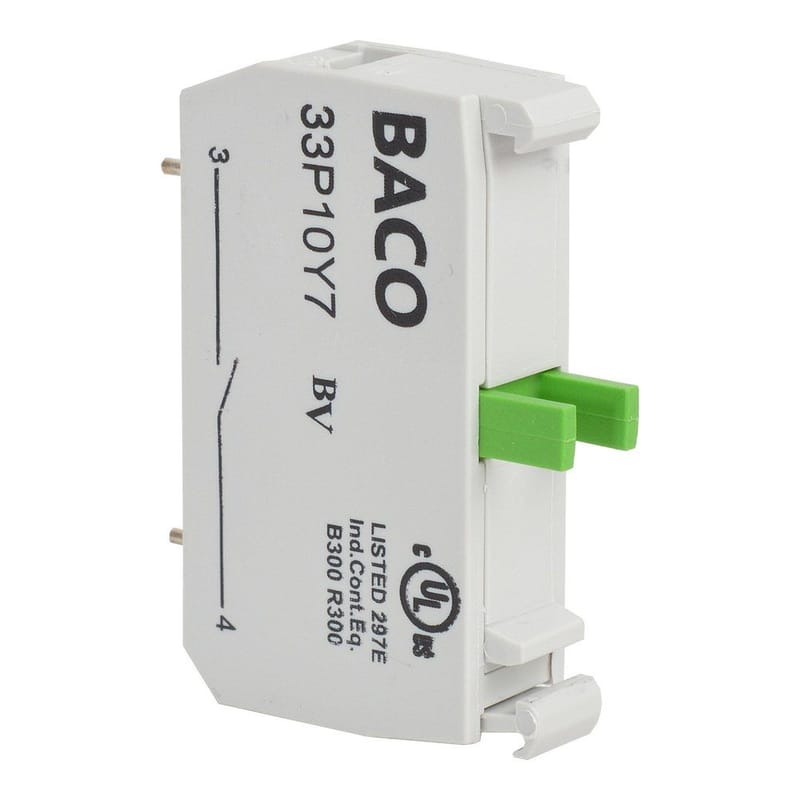

33P10Y7 Baco 1 NO (Gold) Printed Circuit Board (PCB) Terminal Contact Block

The Baco 33P10Y7 is a 1 NO (Gold) Printed Circuit Board (PCB) Terminal Contact Block.

Mounts on a printed circuit board (pin-style terminals) — no mounting clip required.

Specifications:

Manufacturer:	Baco Controls
Part Number:	33P10Y7
Device Type:	Contact Block
Size:	22 mm
Terminal Type:	Printed Circuit Board (PCB) Terminals
Configuration:	Component
Contacts:	1 Normally Open (NO) (Gold)
Mounting:	PCB mount (pin-style terminals)

General Specifications:

Rated insulation voltage:	250 V AC (IEC and UL 508)
UL 508 rating:	B300 / R300
Conventional thermal current:	AC15: 5 A, DC13: 1 A
NC contacts:	Positive opening (IEC/EN 60947-5-1)
Electrical life:	1 million cycles
Minimum operating current:	5 V DC, 1 mA (gold plated contacts)
Pin diameter:	1 mm
Degree of protection:	IP20 at the rear of the panel

Source: Baco Controls catalog 803, technical specifications.
