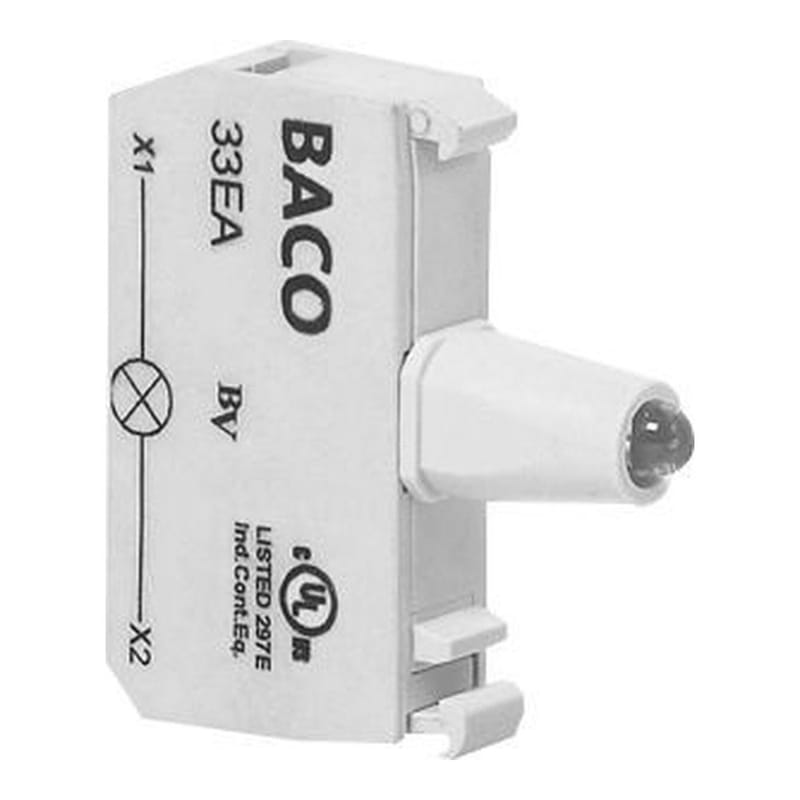

33EARL4 Baco 48 V Red LED Screw Terminal Block

The Baco 33EARL4 is a 48 V Red LED Screw Terminal Block.

Fits Baco 22mm and 30mm operators: it snaps onto the mounting clip behind the operator head.

• Snaps onto the mounting clip behind an illuminated operator or pilot light
• Long-life LED; match the module voltage to your control circuit

Specifications:

Manufacturer:	Baco Controls
Part Number:	33EARL4
Device Type:	LED Module
Size:	22 mm
Terminal Type:	Screw Terminal
Configuration:	Component
Color:	Red
LED Voltage:	48 V AC/DC
Mounting:	Clip mount (on the mounting clip behind the operator)

General Specifications:

Rated insulation voltage:	300 V
Current consumption:	15 mA ± 5%
LED lifetime:	100,000 hours at 25 °C
Operating temperature:	-25 °C to +70 °C

Source: Baco Controls catalog 803, technical specifications.
