33D10 Baco 1 NO Faston Terminal Contact Block
Sku#: 33D10
Contact us for availability.
Details
More Information
Reviews

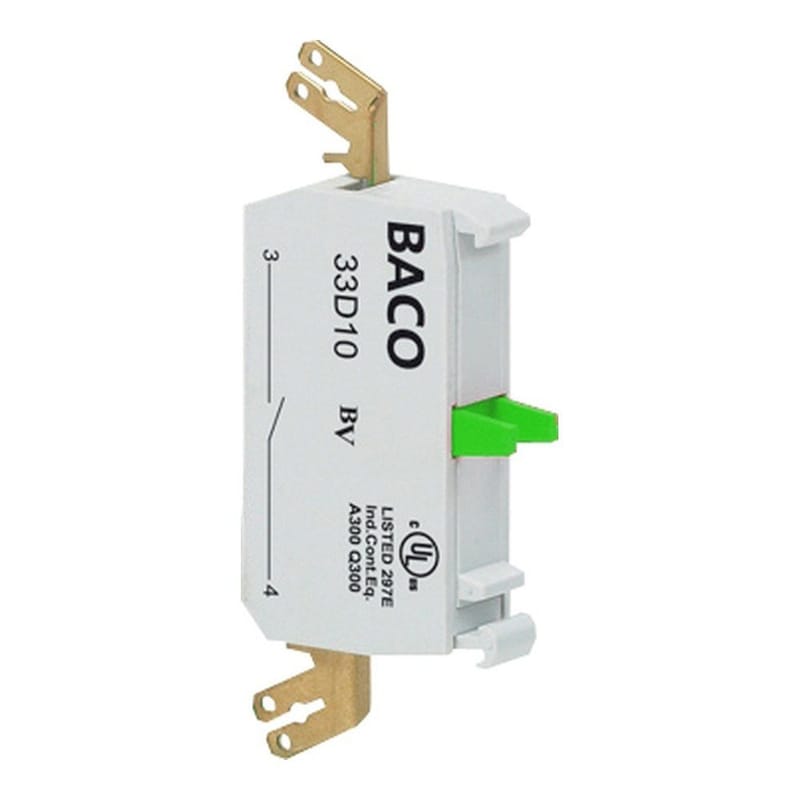

The Baco 33D10 is a 1 NO Faston Terminal Contact Block.
Fits Baco 22mm and 30mm operators: it snaps onto the mounting clip behind the operator head.
- Snaps onto the mounting clip behind the operator
- Stack several blocks on one clip to switch extra circuits
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | 33D10 |
| Device Type: | Contact Block |
| Size: | 22 mm |
| Terminal Type: | Faston Terminals |
| Configuration: | Component |
| Contacts: | 1 Normally Open (NO) |
| Mounting: | Clip mount (on the mounting clip behind the operator) |
General Specifications:
| Rated insulation voltage: | 320 V AC (IEC), 300 V AC (UL 508) |
| UL 508 rating: | A300 / Q300 |
| Conventional thermal current: | AC15: 10 A, DC13: 2.5 A |
| NC contacts: | Positive opening (IEC/EN 60947-5-1) |
| Electrical life: | 1 million cycles |
| Minimum operating current: | 24 V DC, 5 mA |
| Faston size: | 6.35 mm (0.25") or 2 x 2.8 mm (0.110") |
| Degree of protection: | IP20 at the rear of the panel |
Source: Baco Controls catalog 803, technical specifications.
