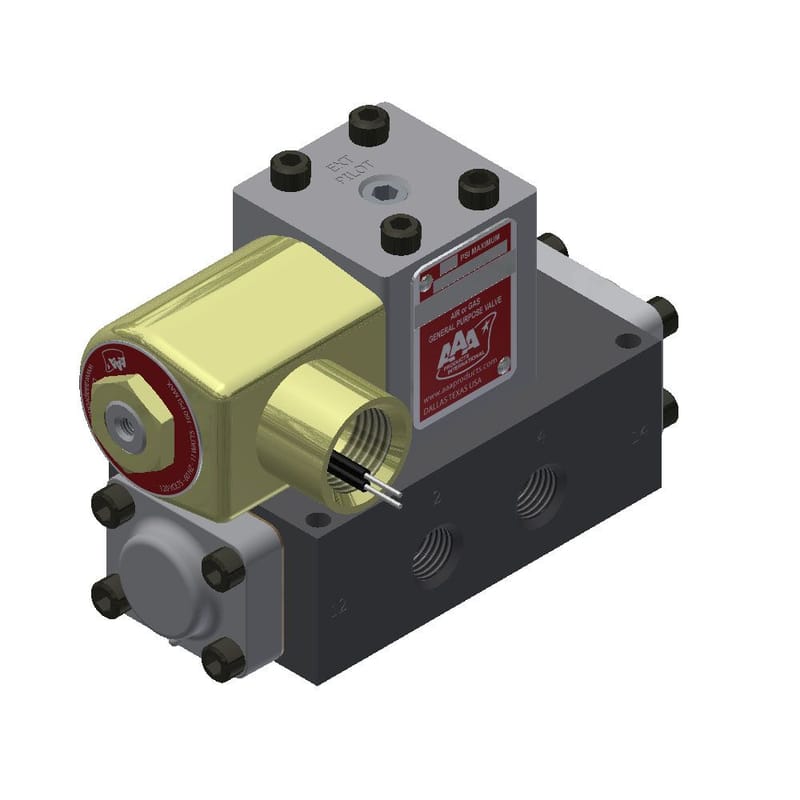

319V AAA Solenoid Operated Valve

The AAA 319V is a solenoid operated valve.  The AAA 319V is a 1/4" NPTF side ported, 2 position, spring return, solenoid operated valve, with Buna-N body O-Rings and DOW-55 grease. The spool is shifted by 50 to 160 psi internal pilot air derived from pressure in port 1 when the solenoid is energized. 50 to 160 psi must be maintained on port 1 to keep the spool shifted while the coil is energized. The spool is spring returned when the solenoid is de-energized. See additional information on solenoid valve operation.
