Details

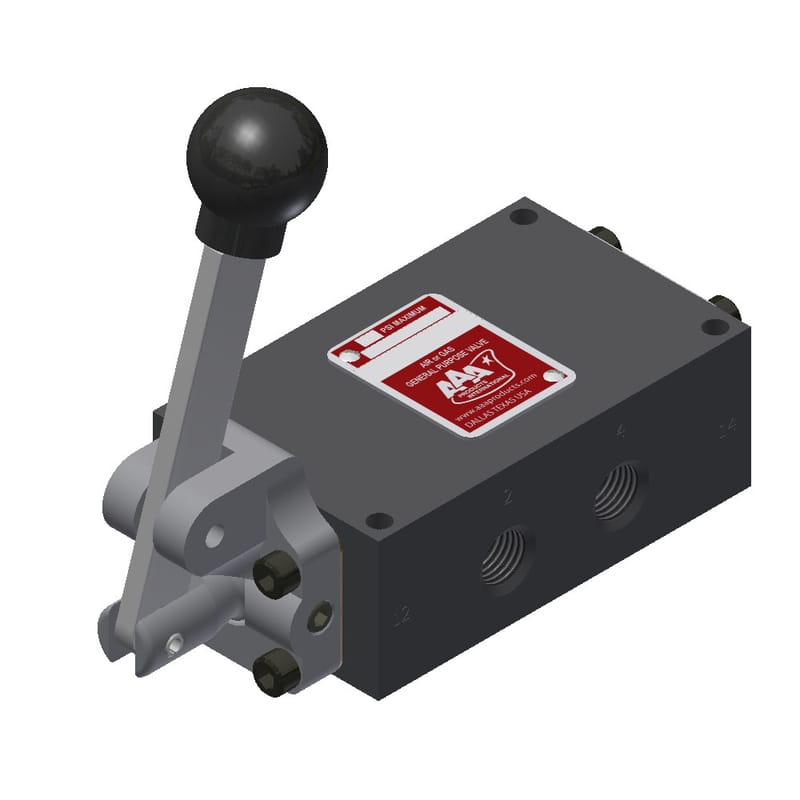

The AAA 289VY is a manualy operated valve. The 289VY is a 1/4" NPTF side ported, 3 position, closed center spool, positive detent in position 'C', spring return from position 'A' to center position 'B', lever/hand operated valve. When the lever is pushed over the valve body, the lever will remain in position when released. When the lever is pulled away from the valve body, the lever will spring to center position. Greater port pressures may require greater shifting force. (Also known as HW2).
SPECIFICATIONS:
Pressure: 25 to 250 psi on the main body of the valve.
Vacuum: The five main ports can be operated on industrial vacuum to 28" Hg, based on a 30" barometer.
Temperature: -20°F to 250°F. Caution: If it is possible that the ambient temperature may fall below freezing, the medium must be moisture free to prevent internal damage or unpredictable behavior.
Mounting: The valve can be mounted in any orientation.
O-Rings: Viton.
Materials: Black anodized 6061-T6 aluminum body, hard anodized aluminum spool, A380 aluminum end caps, steel lever, composite gaskets, steel fasteners.
Flow: 73.9 SCFM, 1.6 Cv
Repair Kit: ERKV-3.
3-Way or 5-Way: While this valve is basically 4-way, it can be used for 5-way service by using ports 2 or 4 as an inlet, or 3-way service by plugging the unused port 2 or 4.
Fluid Media: Soft seal models are made for air, vacuum, and gases compatible with component materials. They should not be used with liquids.
Weight: 1.50 lbs. -
Additional Information
Part Number 289VY Brand AAA Products International Pack Size 1.0000 UOM EA Lead time (Historical if not in stock) 0 Lead Days Product Type Valve - Manual Operating Fluid Air Fluid Power Type Pneumatic Material Aluminum Valve Positions 3 Position Thread Size 1/4" NPT Actuation 3 (3 Position Closed Center) -
