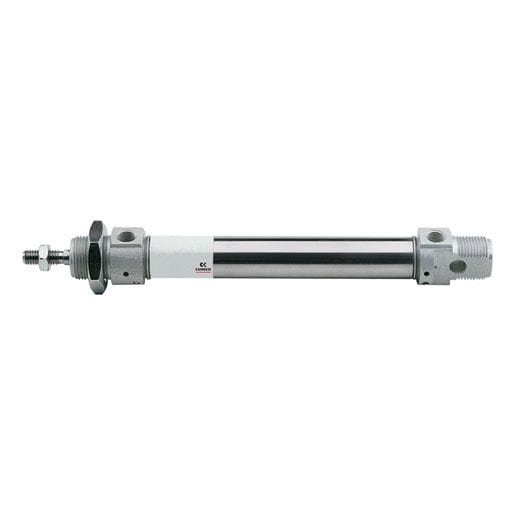

24N2A20A040 Camozzi Series 24 Double-Acting Mini Cylinder, 20 mm Bore, 40 mm Stroke
Sku#: 24N2A20A040
The Camozzi 24N2A20A040 Mini Cylinder is a compact, double-acting pneumatic actuator designed to provide dependable linear motion in industrial automation and machine-building applications. Part of the Camozzi Series 24, this cylinder features a 20 mm bore and 40 mm stroke.
Its ISO 6432 round-body configuration makes the 24N2A20A040 well suited for installations where available space is limited. The double-acting design uses compressed air to power both extension and retraction, supporting controlled, repeatable movement throughout the operating cycle.
A magnetic piston allows compatible proximity switches to detect piston position for machine sequencing, monitoring and automated control. The cylinder also features G1/8 pneumatic ports and mechanical cushioning to help reduce impact at the end of the stroke.
- Manufacturer: Camozzi Automation
- Part Number: 24N2A20A040
- Series: Series 24
- Operation: Double acting
- Bore Size: 20 mm
- Stroke Length: 40 mm
- Piston: Magnetic
- Port Size: G1/8
- Cushioning: Mechanical cushioning
- Configuration: ISO 6432 round-body mini cylinder
The Camozzi 24N2A20A040 is an effective choice for compact positioning, pushing, lifting, sorting and transfer operations in automated equipment. Its standardized configuration also simplifies integration into new machinery and replacement installations.
