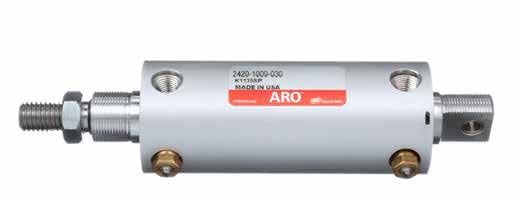

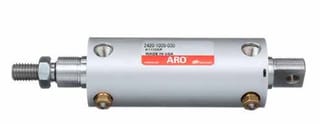

2430-5009-060 ARO Economair Round Cylinder

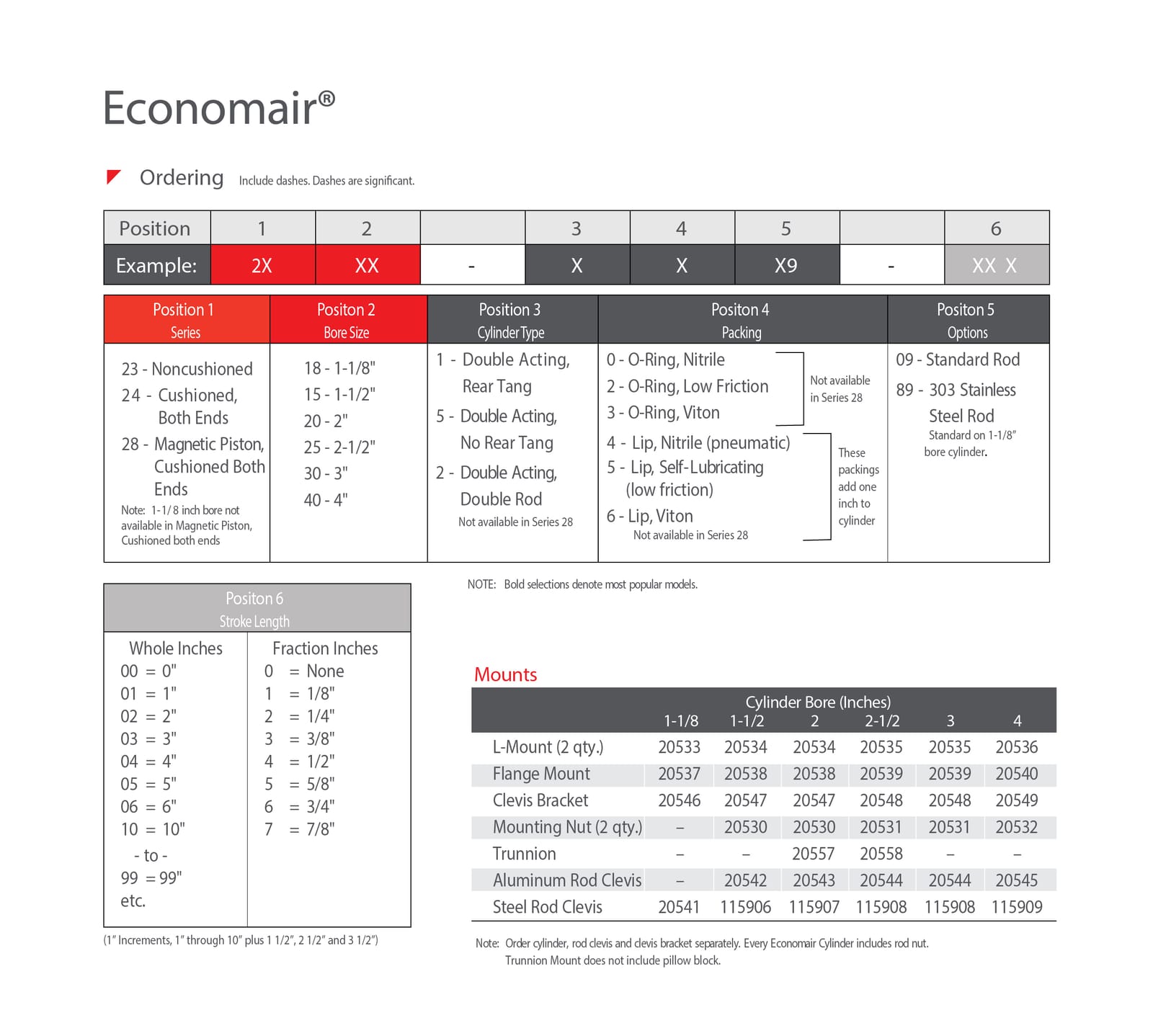

ARO Economair Cylinders are available in three series - Series 23, 24, and 28

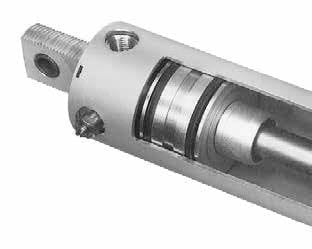

ARO Economair round cylinders are medium to heavy-duty units that can be installed anywhere that a repairable cylinder is desired.  Prelubed, they’re suitable for operation without externally applied lubrication.  Unique endcap retention design provides a concentric assembly, resulting in a service life superior to tie rod cylinder construction.

Cylinder heads are high tensile strength aluminum alloy, retained by a feed ring wire, a simple design that eliminates excess cylinder weight and bulk.
•     The barrel I.D. is hard-coated aluminum with a Rockwell C60 hardness. A finish of 16 microinches or better insures low friction and smooth operation.
•     Piston rod is ground and polished, hard-chrome plated steel for minimum friction and maximum packing life.  Optional 303 stainless steel is excellent for corrosion resistance and washdown applications (303 stainless steel is standard on 1-1/8-inch bore cylinders).
•     Adjustable cushions provide excellent control of cylinder deceleration. Full range adjustability (except fixed cushions on 1-1/8-inch bore).
•     High grade, self-lubricating bronze rod bearing reduces friction and promotes smooth operation.
•     Piston seal selection insures job-matched performance - Buna N O-ring, Low Friction U-cup and self-lubricating packings available.
•     Wear compensating rod wiper protects internal seals and parts from dirt, grit and debris.
•    NPTF dry seal pipe threads on ports.
•    Optional self-lubricating U-cup seals reduce drag and promote extra cylinder life.
