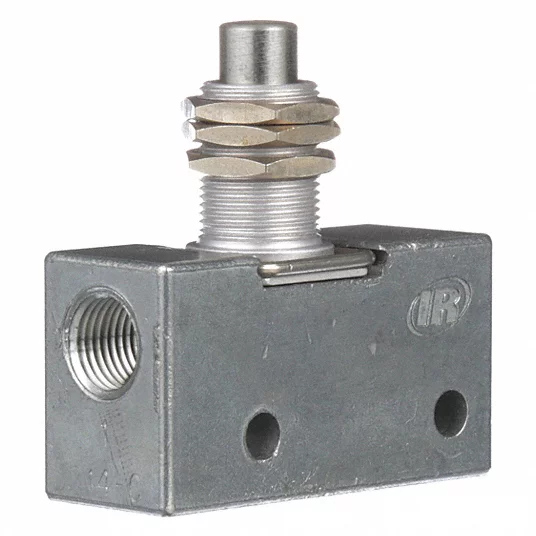

214-C ARO 3-Way Manual Air Control Valve, 1/8-Inch NPT
Sku#: 214-C
The ARO 214-C Manual Air Control Valve provides reliable mechanical control for industrial pneumatic systems. This compact 3-way, 2-position valve features a straight plunger actuator with spring return, making it well suited for detecting the position of moving equipment such as pneumatic cylinders, gates and slides.
The 214-C uses 1/8-inch NPT connections and supports operating pressures up to 150 psi. Depending on how it is connected, the valve can be used for normally passing, normally non-passing, selector and other 2-way control functions. Standard mounting holes on 1-inch electrical centers help simplify installation in machinery and pneumatic control assemblies.
- Valve configuration: 3-way, 2-position
- Actuation: Straight plunger
- Return mechanism: Spring return
- Port size: 1/8-inch NPT
- Maximum operating pressure: 150 psi
- Operating temperature range: 32°F to 160°F
- Flow capacity: Approximately 7.5 SCFM
- Flow coefficient: Approximately 0.20 Cv
- Typical applications: Position sensing for cylinders, gates, slides and other moving machine components
The ARO 214-C is a practical choice for compact pneumatic control applications that require dependable mechanically actuated switching. Its versatile plumbing options allow the valve to accommodate several common pneumatic circuit functions.
