14HL-4 Fabco Directional Control Valve

1/4 & 3/8 NPT PORTED, MANUAL, MECHANICAL AND PILOT OPERATED AIR VALVES – “The Finest in Simplicity” 2, 3 and 4 Way - 2 Position – Operation to 150 psi Air

Suitable for Vacuum directional fl ow applications, but NOT for holding vacuum.The short stroke of the lightweight Delrin® spool provides fast, posiitive, and reliable response

Fabco directional control valve features:

• Aluminum bar body
• Anodized black
• Honed & burnished bore
• Pressure balanced spool
• Delrin spool
• Buna-N seals
• Operation to 150psi
• 4 Way - 5 port may be used as either single inlet - dual exahust or dual inlet - single exhaust
• Prelubed with Magnalube - G Grease
• Interchangeability of Parts
• Cv = 1.0 (56.2 SCFM Free Flow to Atmosphere at 80 psi Supply
• Operating Temperature +32 to +180F; Solenoid controlled models +150F max.

Options

• Light spring - Specify Option -L
• Viton seals - Specify Option -V
• Spools for bleeder pilot - Consult factory

Fabco 14HL-4 Specifications:

Hardened & plated steel shaft with unique connection to spool results in positive shifting.  Standard 3 Way spring return is normally closed.  For nomallyopen specify by substituting -30 for -3.

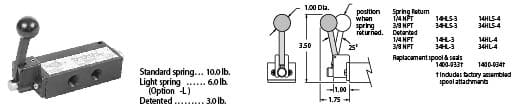

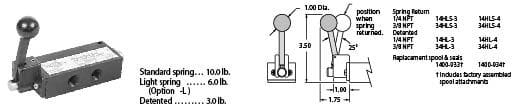

Force to actuate:

• Standard Spring   10.0 lb.
• Light spring     6.0 lb. (Option -L)
• Detented    3.0 lb.
