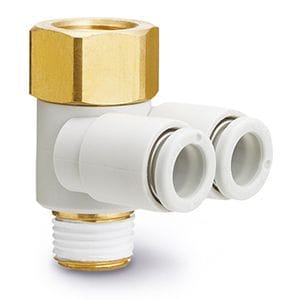

10-KQ2ZF08-02NS SMC KQ2 One-Touch Fitting - Branch Universal Female Elbow, 8 mm OD Tube x R1/4 Female, Clean Series

The SMC 10-KQ2ZF08-02NS is a clean series KQ2 branch universal female elbow. It connects 8 mm OD tubing to an R1/4 female thread. Use to connect two tubes to one male thread at a 90 degree angle.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
