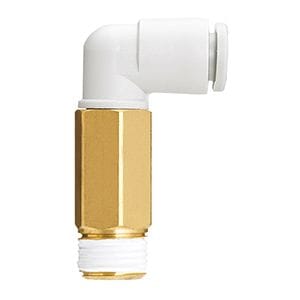

10-KQ2W04-M5G1 SMC KQ2 One-Touch Fitting - Extended Male Elbow, 4 mm OD Tube x M5 Male, Clean Series

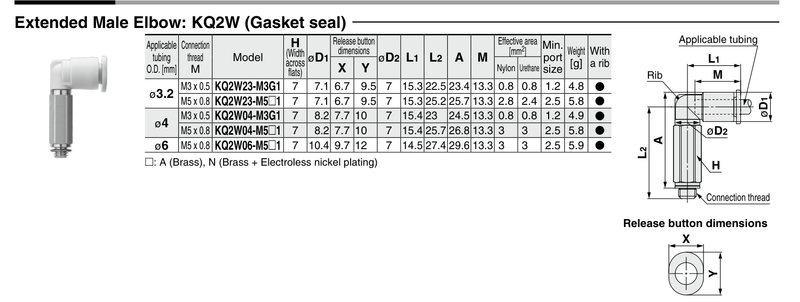

The SMC 10-KQ2W04-M5G1 is a clean series KQ2 extended male elbow. It connects 4 mm OD tubing to an M5 x 0.8 male thread. Use to connect a tube to a female thread at a 90 degree angle, with extra height to clear neighboring fittings and allow stacked piping.

303 stainless steel body. Copper-free with fluorine grease and a white resin body for cleanroom use. Oval type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
