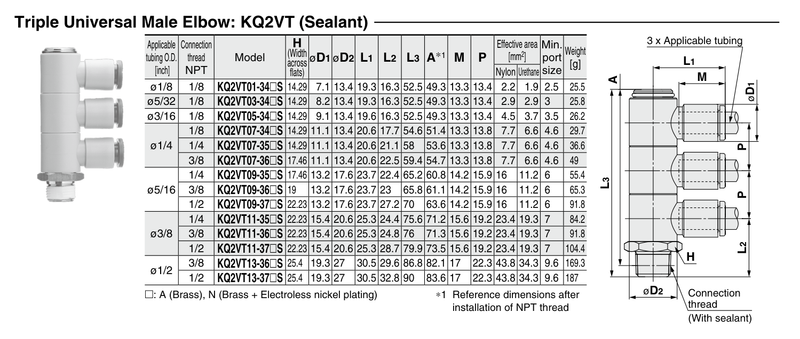

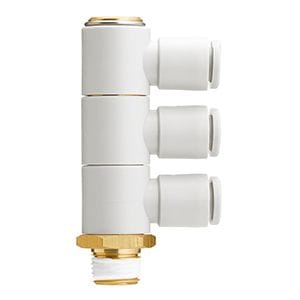

10-KQ2VT07-35NS SMC KQ2 One-Touch Fitting - Triple Universal Male Elbow, 1/4 in OD Tube x 1/4 NPT Male, Clean Series

The SMC 10-KQ2VT07-35NS is a clean series KQ2 triple universal male elbow. It connects 1/4 in OD tubing to a 1/4 NPT male thread. Use to connect three tubes to one female thread at a 90 degree angle. Each outlet rotates independently for alignment.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
