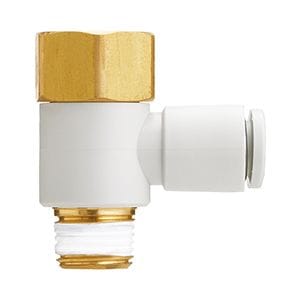

10-KQ2VF04-01NS SMC KQ2 One-Touch Fitting - Universal Female Elbow, 4 mm OD Tube x R1/8 Female, Clean Series

The SMC 10-KQ2VF04-01NS is a clean series KQ2 universal female elbow. It connects 4 mm OD tubing to an R1/8 female thread. Use to connect a tube to a male thread at a 90 degree angle.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
