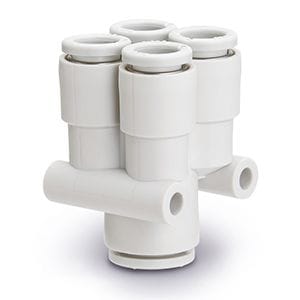

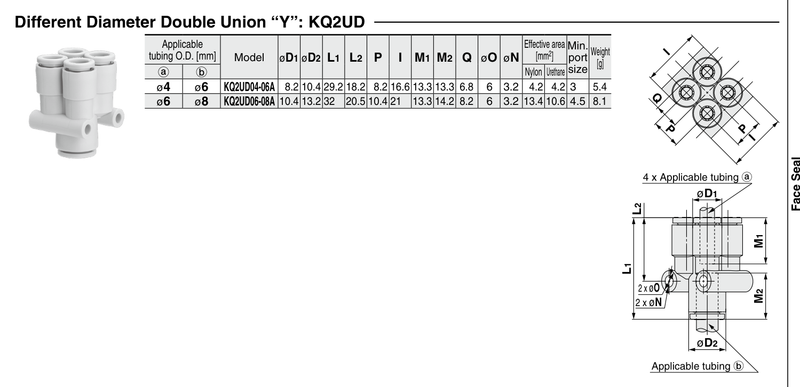

10-KQ2UD04-06A SMC KQ2 One-Touch Fitting - Different Diameter Double Union "Y", 4 mm to 6 mm OD Tube, Clean Series

The SMC 10-KQ2UD04-06A is a clean series KQ2 different diameter double union "Y". It connects 4 mm OD tubing to 6 mm OD tubing. Use to join four tubes of reduced size, branching in the same direction.

Brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
