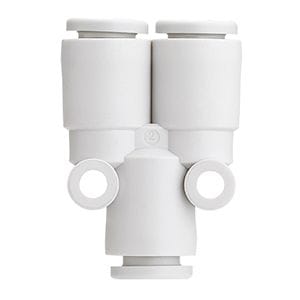

10-KQ2U12-00A SMC KQ2 One-Touch Fitting - Union "Y", 12 mm OD Tube, Clean Series

The SMC 10-KQ2U12-00A is a clean series KQ2 union "Y". It connects 12 mm OD tubing. Use to join three tubes of the same size, with two branching in the same direction.

Brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
