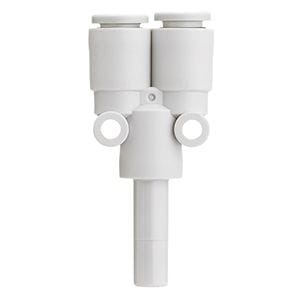

10-KQ2U10-99A SMC KQ2 One-Touch Fitting - Plug-in "Y", 10 mm OD Tube, Clean Series

Sku#: 10-KQ2U10-99A

Contact us for availability.
SMC KQ2 plug-in "Y". Connects 10 mm OD tubing through a plug-in stem that fits directly into another One-touch fitting. Brass, cleanroom specification.

The SMC 10-KQ2U10-99A is a clean series KQ2 plug-in "Y". It connects 10 mm OD tubing through a plug-in stem that fits directly into another One-touch fitting. Use to branch an existing One-touch fitting into two tubes running in the same direction.

Brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
