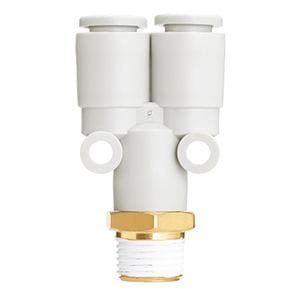

10-KQ2U06-03NS SMC KQ2 One-Touch Fitting - Branch "Y", 6 mm OD Tube x R3/8 Male, Clean Series

The SMC 10-KQ2U06-03NS is a clean series KQ2 branch "Y". It connects 6 mm OD tubing to an R3/8 male thread. Use to connect two tubes to one female thread, with both tubes running in the same direction.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
