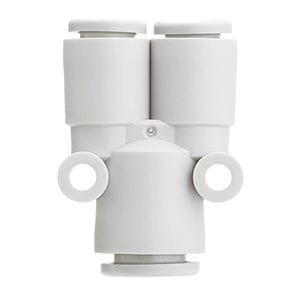

10-KQ2U04-06A SMC KQ2 One-Touch Fitting - Different Diameter "Y", 4 mm to 6 mm OD Tube, Clean Series

The SMC 10-KQ2U04-06A is a clean series KQ2 different diameter "Y". It connects 4 mm OD tubing to 6 mm OD tubing. Use to join tubes of different sizes, with the reduced sizes branching in the same direction.

Brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
