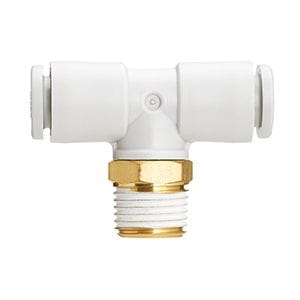

10-KQ2T10-03NS SMC KQ2 One-Touch Fitting - Male Branch Tee, 10 mm OD Tube x R3/8 Male, Clean Series

The SMC 10-KQ2T10-03NS is a clean series KQ2 male branch tee. It connects 10 mm OD tubing to an R3/8 male thread. Use to connect two tubes to one female thread, with both tubes at 90 degrees to the thread.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
