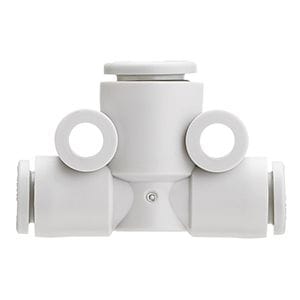

10-KQ2T06-04A SMC KQ2 One-Touch Fitting - Different Diameter Tee, 6 mm to 4 mm OD Tube, Clean Series

The SMC 10-KQ2T06-04A is a clean series KQ2 different diameter tee. It connects 6 mm OD tubing to 4 mm OD tubing. Use to join tubes of different sizes in a tee.

Brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
