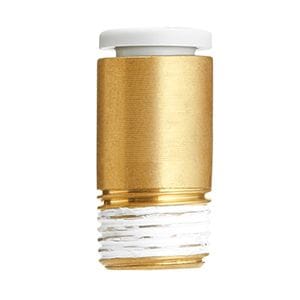

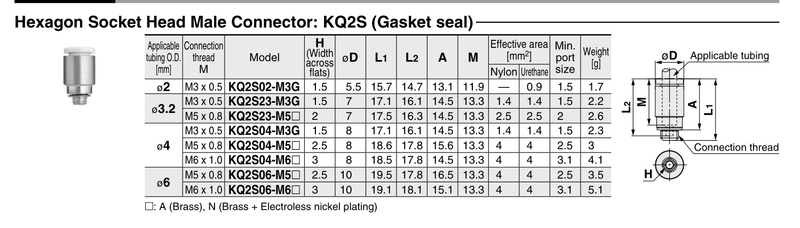

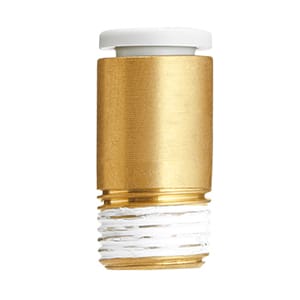

10-KQ2S23-M5N SMC KQ2 One-Touch Fitting - Hexagon Socket Head Male Connector, 3.2 mm OD Tube x M5 Male, Clean Series

The SMC 10-KQ2S23-M5N is a clean series KQ2 hexagon socket head male connector. It connects 3.2 mm OD tubing to an M5 x 0.8 male thread. Use to connect a tube to a female thread with a straight connection where a hex key is the only wrench that will fit.

Nickel-plated brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
