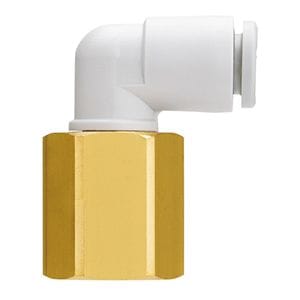

10-KQ2LF12-04N SMC KQ2 One-Touch Fitting - Female Elbow, 12 mm OD Tube x R1/2 Female, Clean Series

The SMC 10-KQ2LF12-04N is a clean series KQ2 female elbow. It connects 12 mm OD tubing to an R1/2 female thread. Use to connect a tube to a male thread at a 90 degree angle.

Nickel-plated brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
