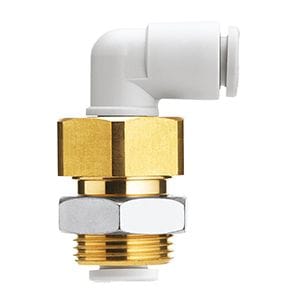

10-KQ2LE06-00N SMC KQ2 One-Touch Fitting - Bulkhead Male Elbow, 6 mm OD Tube, Clean Series

The SMC 10-KQ2LE06-00N is a clean series KQ2 bulkhead male elbow. It connects 6 mm OD tubing to a threaded port. Use to pass a tube through a panel and turn it 90 degrees on the far side.

Nickel-plated brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread M14 x 1, for panel thickness up to 7 mm; requires a 15 mm mounting hole.
