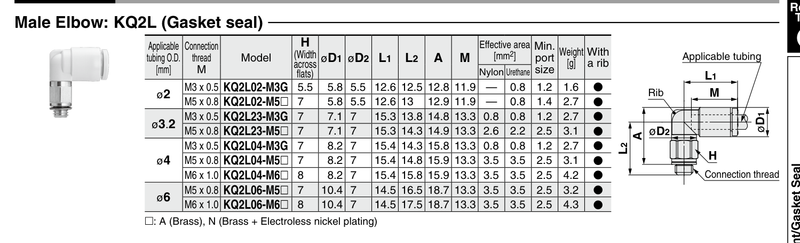

10-KQ2L06-M5N SMC KQ2 One-Touch Fitting - Male Elbow, 6 mm OD Tube x M5 Male, Clean Series

The SMC 10-KQ2L06-M5N is a clean series KQ2 male elbow. It connects 6 mm OD tubing to an M5 x 0.8 male thread. Use to connect a tube to a female thread at a 90 degree angle.

Nickel-plated brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
