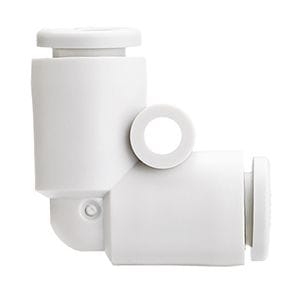

10-KQ2L06-00A SMC KQ2 One-Touch Fitting - Union Elbow, 6 mm OD Tube, Clean Series

The SMC 10-KQ2L06-00A is a clean series KQ2 union elbow. It connects 6 mm OD tubing. Use to join two tubes of the same size at a 90 degree angle.

Brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
