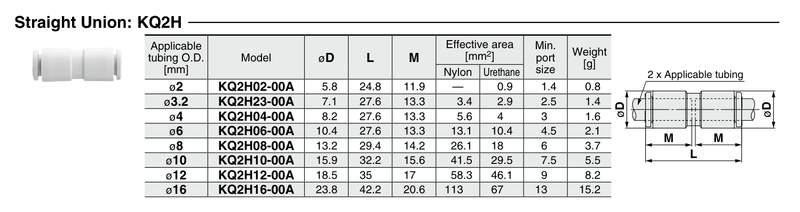

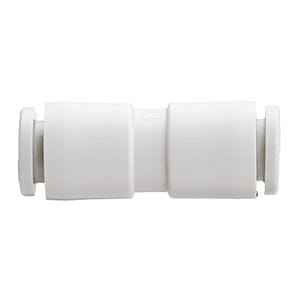

10-KQ2H10-00A SMC KQ2 One-Touch Fitting - Straight Union, 10 mm OD Tube, Clean Series

The SMC 10-KQ2H10-00A is a clean series KQ2 straight union. It connects 10 mm OD tubing. Use to join two tubes of the same size in a straight line.

Brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
