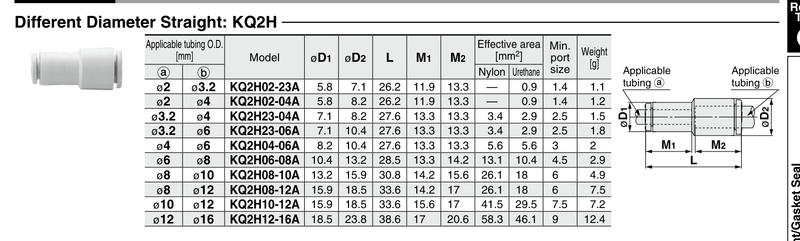

10-KQ2H08-10A SMC KQ2 One-Touch Fitting - Different Diameter Straight, 8 mm to 10 mm OD Tube, Clean Series

The SMC 10-KQ2H08-10A is a clean series KQ2 different diameter straight. It connects 8 mm OD tubing to 10 mm OD tubing. Use to join two tubes of different sizes in a straight line.

Brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
