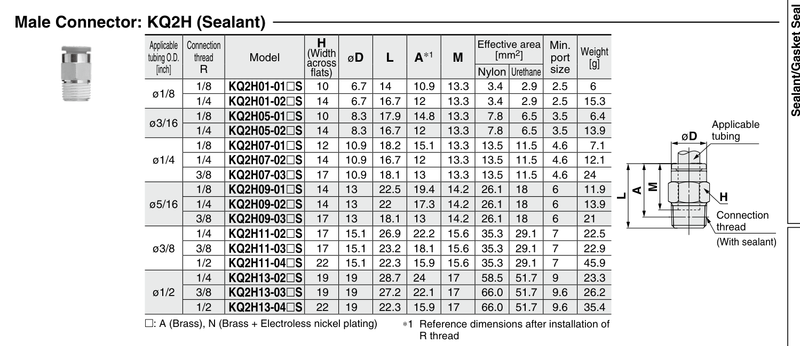

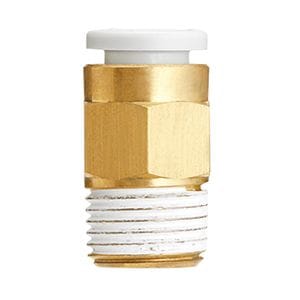

10-KQ2H07-01NS SMC KQ2 One-Touch Fitting - Male Connector, 1/4 in OD Tube x R1/8 Male, Clean Series

The SMC 10-KQ2H07-01NS is a clean series KQ2 male connector. It connects 1/4 in OD tubing to an R1/8 male thread. Use to connect a tube to a female thread with a straight connection.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
