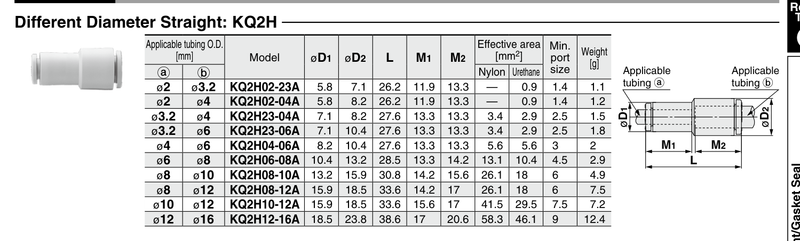

10-KQ2H04-06A SMC KQ2 One-Touch Fitting - Different Diameter Straight, 4 mm to 6 mm OD Tube, Clean Series

The SMC 10-KQ2H04-06A is a clean series KQ2 different diameter straight. It connects 4 mm OD tubing to 6 mm OD tubing. Use to join two tubes of different sizes in a straight line.

Brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
