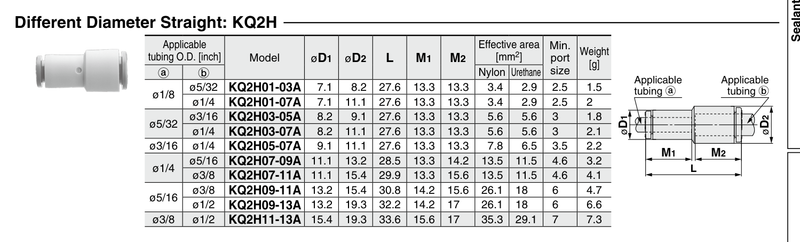

10-KQ2H03-07A SMC KQ2 One-Touch Fitting - Different Diameter Straight, 5/32 in to 1/4 in OD Tube, Clean Series

The SMC 10-KQ2H03-07A is a clean series KQ2 different diameter straight. It connects 5/32 in OD tubing to 1/4 in OD tubing. Use to join two tubes of different sizes in a straight line.

Brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
