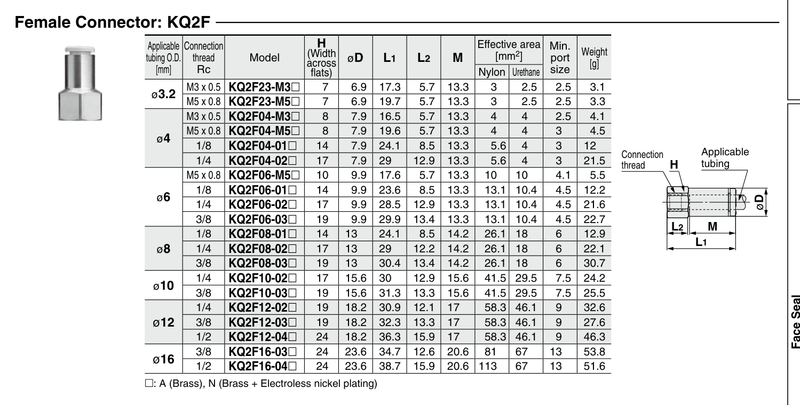

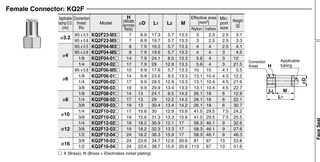

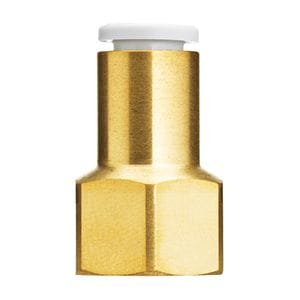

10-KQ2F10-02N SMC KQ2 One-Touch Fitting - Female Connector, 10 mm OD Tube x R1/4 Female, Clean Series

The SMC 10-KQ2F10-02N is a clean series KQ2 female connector. It connects 10 mm OD tubing to an R1/4 female thread. Use to connect a tube to a male thread with a straight connection.

Nickel-plated brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
