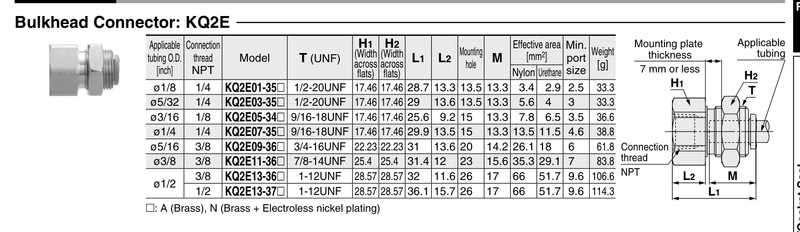

10-KQ2E13-37N SMC KQ2 One-Touch Fitting - Bulkhead Connector, 1/2 in OD Tube x 1/2 NPT Male, Clean Series

The SMC 10-KQ2E13-37N is a clean series KQ2 bulkhead connector. It connects 1/2 in OD tubing to a 1/2 NPT male thread. Use to pass a connection through a panel, with a tube on one side and a male thread on the other.

Nickel-plated brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread 1-12UNF, for panel thickness up to 7 mm; requires a 26 mm mounting hole.
