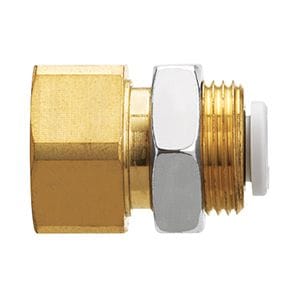

10-KQ2E06-01N SMC KQ2 One-Touch Fitting - Bulkhead Connector, 6 mm OD Tube x R1/8 Male, Clean Series

The SMC 10-KQ2E06-01N is a clean series KQ2 bulkhead connector. It connects 6 mm OD tubing to an R1/8 male thread. Use to pass a connection through a panel, with a tube on one side and a male thread on the other.

Nickel-plated brass body. Copper-free with fluorine grease and a white resin body for cleanroom use. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread M14 x 1, for panel thickness up to 7 mm; requires a 15 mm mounting hole.
