0612-D Bimba Original Line Double Acting Air Cylinder

Sku#: 0612-D

Contact us for availability.

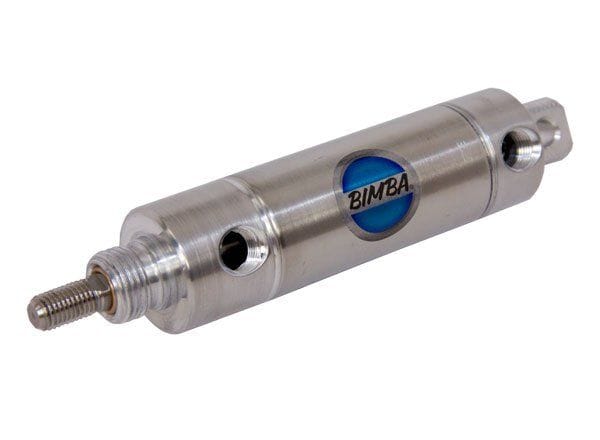

The BImba 0612-D double acting air cylinder has a 7/8" bore size and a12 inch stroke length. The Bimba 0612-D cyclinder uses a front nose mounting style, a standard lube and a standard blackened carbon steel rod.

The Bimba  "Blue and Improved" Original Line® air cylinder now features permanent grease lubrication. This product line includes standard air cylinders, three-position air cylinders, MRS air cylinders, non-rotating air cylinders, and PC air cylinders. Design enhancements to this line have more than doubled the anticipated service life of this industry-leading, non-repairable family of air cylinders.

  • Bore sizes: 5/16", 7/16", 9/16", 3/4", 7/8", 1 1/16", 1 1/4", 1 1/2", 1 3/4", 2", 2 1/2", 3"
  • Wide variety of stroke lengths and mounting styles
  • Over 150,000 Original Line® cylinders are inventoried and ship same day
  • Bimba can manufacture any catalog model in four days or less
  • Blue and Improved design doubles previous cylinder life
  • Permanent grease lubricant requires no additional lubrication during service
