Details

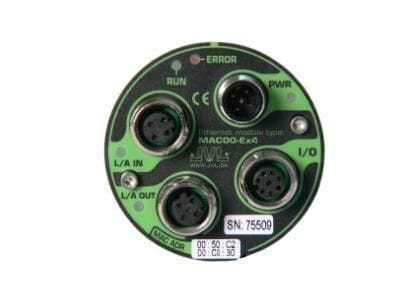

The JVL MAC00-ES4 SERCOS module is equipped with two Ethernet connectors and a built-in switch, enabling line and ring topology without any extra expensive hardware. The JVL Sercos module has several LEDs, enabling technicians and operators to get a quick status overview. There are also opto-isolated digital I/Os embedded in the module, enabling control of extra sensors etc. without external I/O modules. This minimizes the number of devices on the net and reduces cable costs.
All connectors are rugged M12 connectors suitable for the rough conditions in industrial environments.
Furthermore, all registers in the JVL MAC motor® are accessible via the Sercos connection, thereby enabling complete control of motor configuration and motion.
The JVL Sercos module is very easy to use and configure via a predefined setup, and commissioning is easy using the JVL MacTalk application software.Specifications:
- 8 pin connector for I/O. Total 4x M12.
- Control and setup through SERCOS.
- SERCOS input and output. Switch built-in.
- For built-in PLC with (MAC400-3000) or HWI for MAC050-141 etc.
- 1 digital input for enable, limit, etc.
- 1 analogueinput for zero search and adjustment etc.
- 1 digital opto-isolated output up to 15mA for In Position, Error, etc.
- IP67 Protection
- RS232 interface
Sercos Industrial Ethernet
The JVL Sercos modules for MAC motor® and ServoStep have all the important features from the Sercos specification. Automatic recognition of drives is supported by the FSPDrive and the Sercos Drive profiles (FSPDrive/PackProfile/SercosDrive). Synchronization is supported enabling simultaneous operation of up to 511 motors. Hot plugging and redundancy is possible for exchanging motors without power off. Probe/capture is supported enabling use also in packaging machines. JVL delivers SDDML files so the motor is recognized as FSPDrive by Bosch Rexroth.JVL’s Sercos motors are even found and recognized as SercosDrives without the presence of a SDDML file if you "scan” from the Bosch Rexroth development environment (IndraWorks). Read more here: www.Sercos.org.
-
Additional Information
Part Number MAC00-ES4 Brand JVL Industri Elektonik A/S Pack Size 1.0000 UOM EA Lead time (Historical if not in stock) 0 Lead Days Product Type Motor IP Rating IP67 -
